Fire Hose Reel Swinging & Manual Type
| Fire Hose Reel (Swinging & Manual Type) – Specifications | |
|---|---|
| Model | CSJR-07-B |
| Hose Size | 25mm × 25m / 30m |
| Reel Diameter | 600 mm |
| Bracket Length | 320 mm |
| Reel Width | 150 mm |
| Waterway | Full brass, leak-proof connection |
| Pressure Resistance | 30 kg working pressure; WP 12Bar, BP up to 45–60Bar |
| Nozzle | Adjustable jet/spray |
| Durability | 3000+ rotations, 1000+ swings without leakage/damage |
| Extra Features | Powder-coated, anti-UV discs; anti-aging hose |
| Usage | Open valve → Pull hose → Open nozzle → Aim at fire base → Close & rewind after use |
Payment Methods: Cash on Delivery (COD) is only available in Karachi
Warranty: We strive to ensure the highest quality in our products; however, we currently do not offer any warranty. Rest assured, our team is always here to assist with any concerns or inquiries you may have.
Description

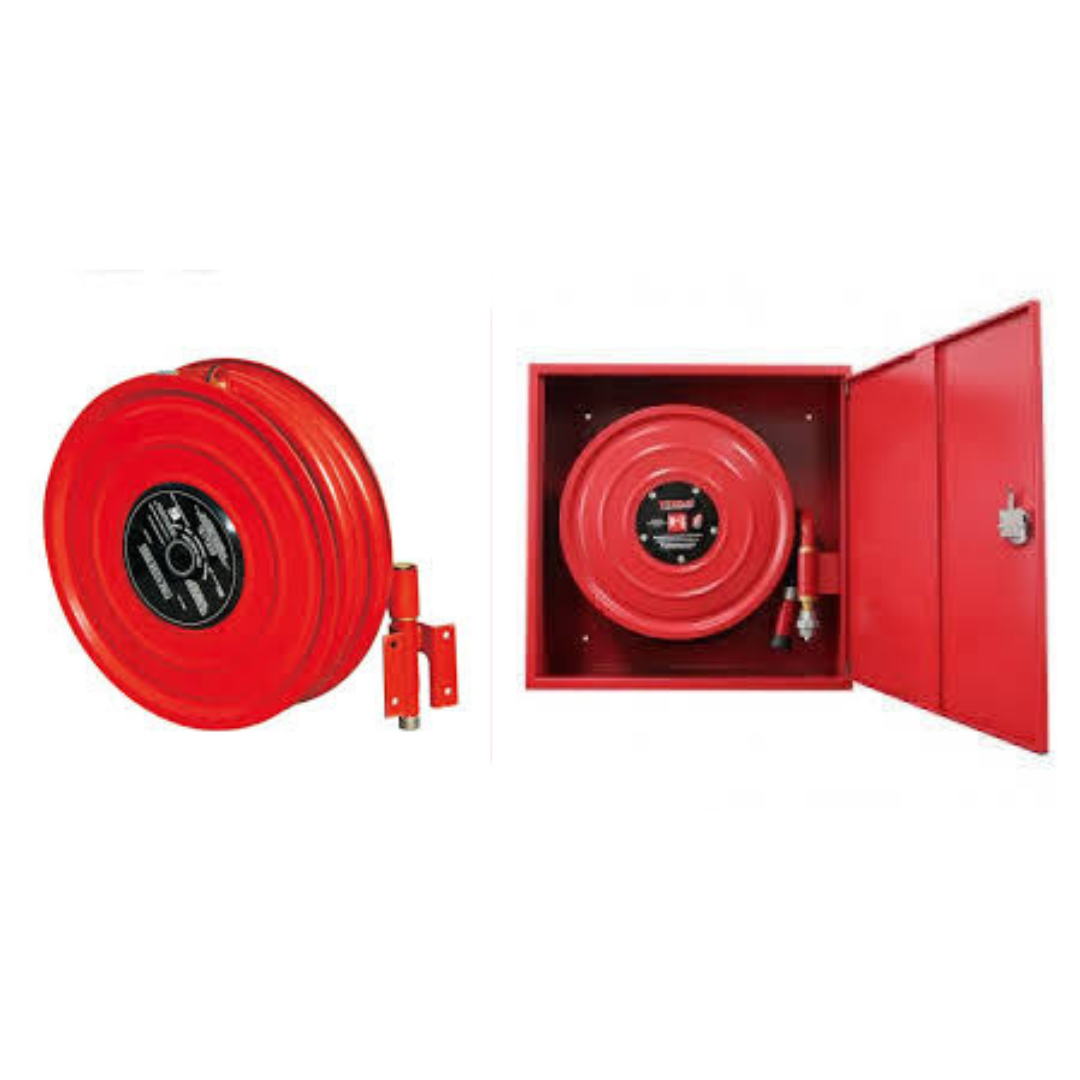

Fire Hose Reel Swinging & Manual Type | Reliable Fire Safety Equipment
Certified by CELPCB Loss P Certification Board, this Fire Hose Reel Swinging & Manual Type is built for effective firefighting in industrial and commercial settings.
Durable & Leak-Proof Design
The hose reel features a full brass waterway that will never rot. Instead of hose clamps, it uses secure nipples to tightly seal the connection between hose and waterway. This ensures no leakage once screwed in place.
High Pressure Resistance & Endurance
Designed to work at 30 kg pressure without damage, this reel withstands a maximum working pressure of 12 Bar. The burst pressure can reach up to 45 Bar, or even 60 Bar for 2W hoses. It also passed endurance tests with over 3000 rotations and 1000 swings—showing no visible leakage or damage.
Versatile Nozzle & Hose Features
The adjustable nozzle allows switching between a jet and spray mode. This makes it suitable for firefighting as well as cleaning tasks. Moreover, the fire hose is anti-aging and UV resistant, ensuring long-lasting performance in harsh environments.
Specifications & Installation
-
Model: CSJR-07-B
-
Hose Size: 25mm x 25m or 30m
-
Reel Diameter: 600mm
-
Bracket Length: 320mm
-
Reel Width: 150mm
-
Powder-coated, UV-resistant side discs improve durability.
-
Optional pressure gauge available on reel axis.
How to Use the Fire Hose Reel
-
Open the valve and pull the hose towards the fire.
-
Open the nozzle and aim the spray or jet at the fire base.
-
After use, close the valve and drain water from the hose.
-
Rewind the hose back onto the reel and close the nozzle.
Equip your facility with this high-quality Fire Hose Reel Swinging & Manual Type for dependable fire protection. Order today to ensure safety and compliance with industry standards.
